Model

• Single Color models: E250PL, E450PL
• Two Color model: E450CPL
• Pyrometer with thermopile sensors and for High Ambient temperature: EL50, EL50-H

Key Features

• IR Pyrometers from E series are highly accurate digital compact Pyrometers working in wide temperature ranges from 0°C-2500°C. These Pyrometers from E Series are highly popular models among the process end users for temperature measurement due to economic prices.
• The pyrometers have fast response time within milliseconds which helps in quick measurements.

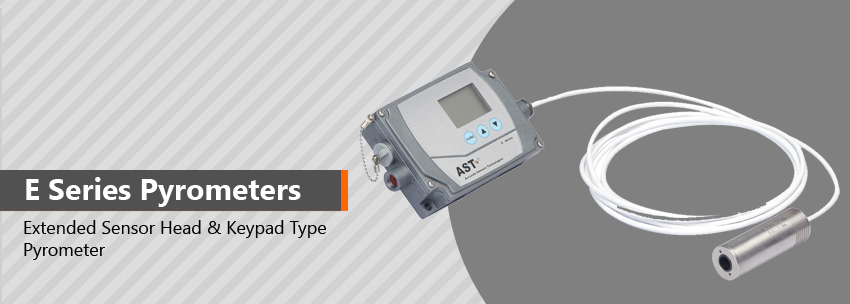

• E series pyrometers are two piece measurement systems containing one extended Sensor head and one electronic box. The electronic box comes with Inbuilt 4 digit LCD display which offers many signal processing features. The Keypad on the electronic box helps in setting parameters like Emissivity, Analog Sub range, Set point, Hysteresis (Hyst), Analog Output, Unit of temp(°C or F), Response Time, Peak Picker and Sensor address etc.
• The pyrometers are available in Single color and Two color options. E250 PL and E450 PL are single color models while E450C PL is a two color model.
• EL50 and EL50-H models are specially designed to withstand high ambient temperature upto 120°C and 180°C easily.
• USB 2.0 output helps in easy communication with PC software "Infrasoft" RS-232/RS-485 interface card is provided optional as per customer requirements. Along with factory supplied software "Infrasoft" parameters can be set and stored on a PC.
